Planetary Reducer VGH Series

Precision Planetary Reducer VGH110 Precision Planetary Reducer VGH110

Flange Rotating Planetary Gearbox VGH110

The VGH Series planetary gearboxes features a rotating output flange that allows machine elements such as gears, pulleys, rotary index tables and transmissions shafting to be easily connected directly to the output. These gearboxes are ideal for motion control applications that require gearboxes to redirect the power flow.
Backlash: 5-12 ARC MIN
Available Sizes: 64, 90, 110
Noise: ≤65 dB
Lifetime: 20,000 hours
Mounting: Through hole
Backlash: 5-12 ARC MIN
Available Sizes: 64, 90, 110
Noise: ≤65 dB
Lifetime: 20,000 hours
Mounting: Through hole

GET A QUOTE

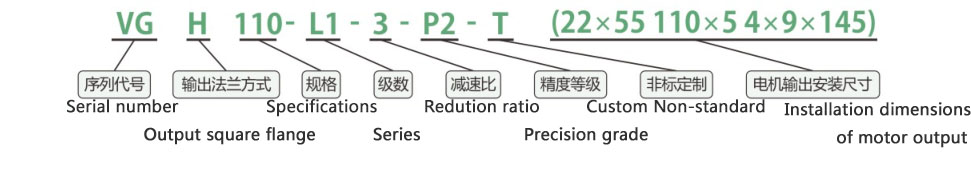

Reducer Model Desciption

model description of VGH Series planetary gearboxes
The VGH Series planetary gearboxes features a rotating output flange that allows machine elements such as gears, pulleys, rotary index tables and transmissions shafting to be easily connected directly to the output. These gearboxes are ideal for motion control applications that require gearboxes to redirect the power flow.

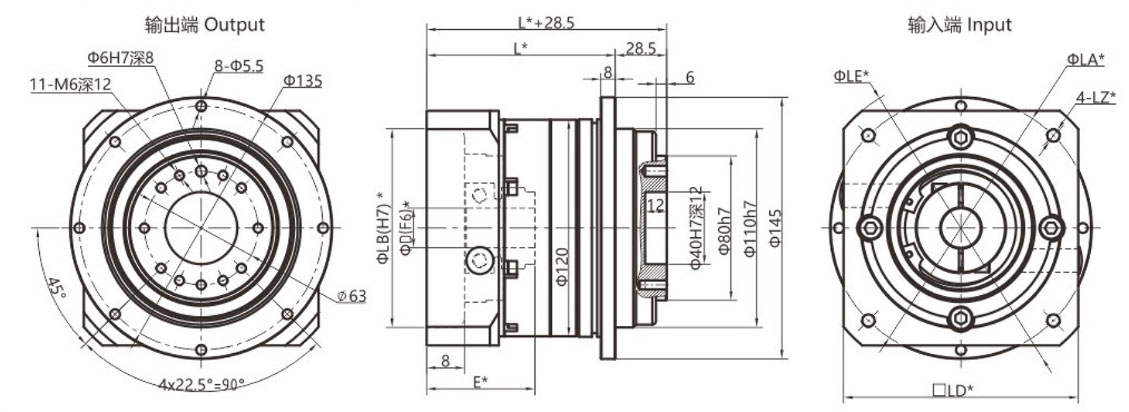

Dimensions of the Reducer


Flange Rotating Planetary Gearbox VGH110 Drawing

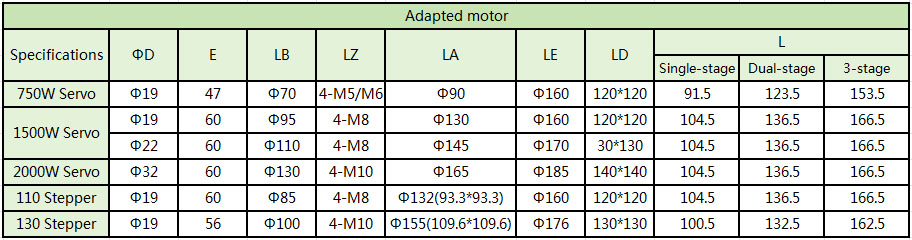

1.Dimensions marked with * vary depending on the installed motor.
2.The input shaft diameter of model 110 is ≤32mm, and input with key is optional.


Reduction ratio

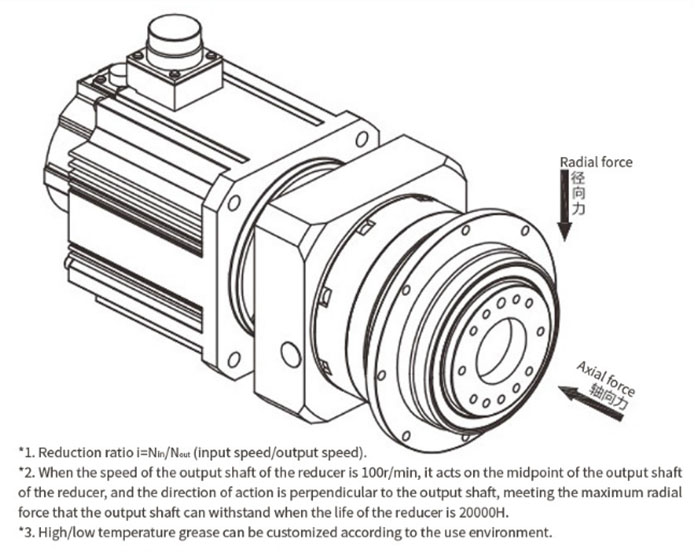

Reducer parameters
