VGSH Planetary Reducer Series

Precision Planetary Reducer Precision Planetary Reducer

Planetary Reducer VGSH110

Planetary Reducer VGSH110

GET A QUOTE

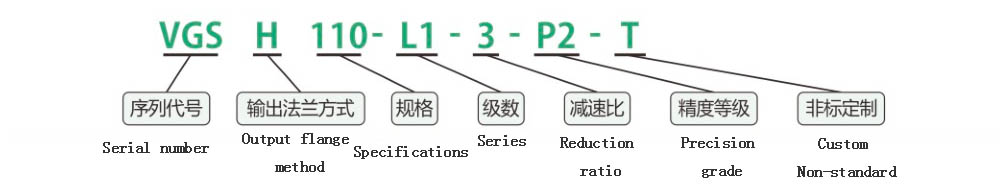

Planetary Reducer Model Description

planetary reducer model description vgsh110

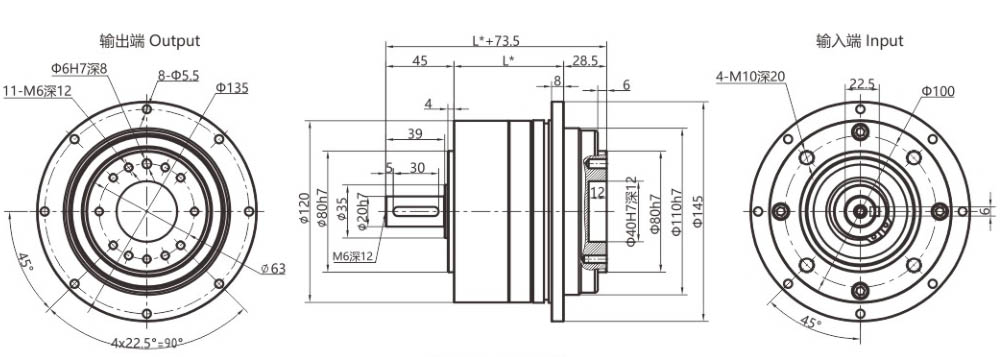

Dimensions of the Reducer

dimension of the planetary reducer VGSH110
SH110 model input shaft diameter ≤35mm.
L
Single-stage Dual-stage Three-stage
72.5 104.5 134.5

Reduction Ration

Series Single-stage Dual-stage Three-stage
Ratio Recommended             16 25 28         80   125 200 250
4 5 7 10 12 15 20 35 40 50 70   60 100 140 175 280 350 400 500 700 1000
Not recommended                       100
Normail torque Nm 225 240 160 90 250 270 250 270 250 270 180 90 250 315 315 135 315 335 315 335 225 30

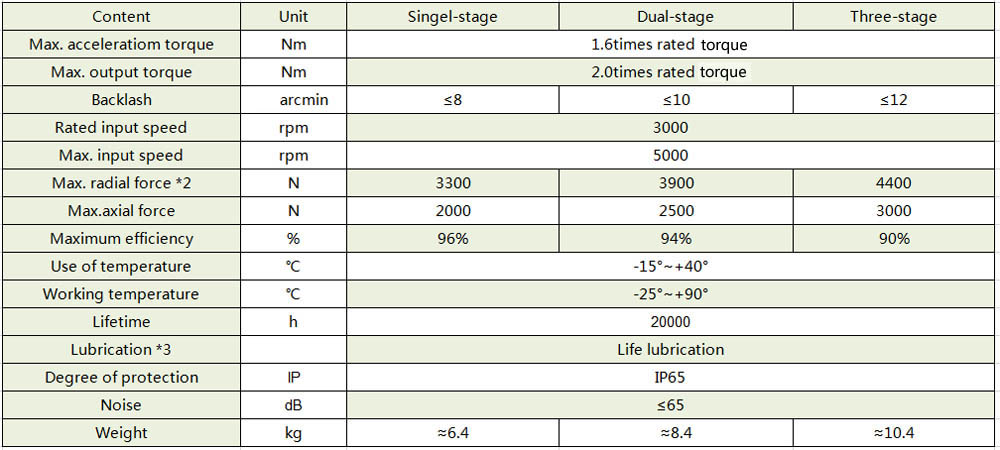

Planetary Reducer Parameters

planetary reducer parameters VGSH110
                         Planetary Reducer Radial Force Axial Force VGSH110
*1. Ratio i=Nin/Nout(Input speed/output speed)
*2. When the speed of the output shaft of the reducer is 100r/min,it acts on the midpoint of the output shaft of the reducer, and the direction of action is perpendicular to the output shaft, meeting the maximum radial force that the output shaft can withstand when the life of the reducer is 20000H.
*3. High/low temperature grease can be customized according to the use environment.

Install


planetary reducer install vdxzf series
