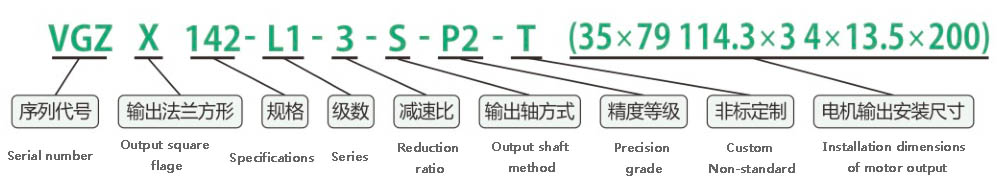

Reducer model desciption

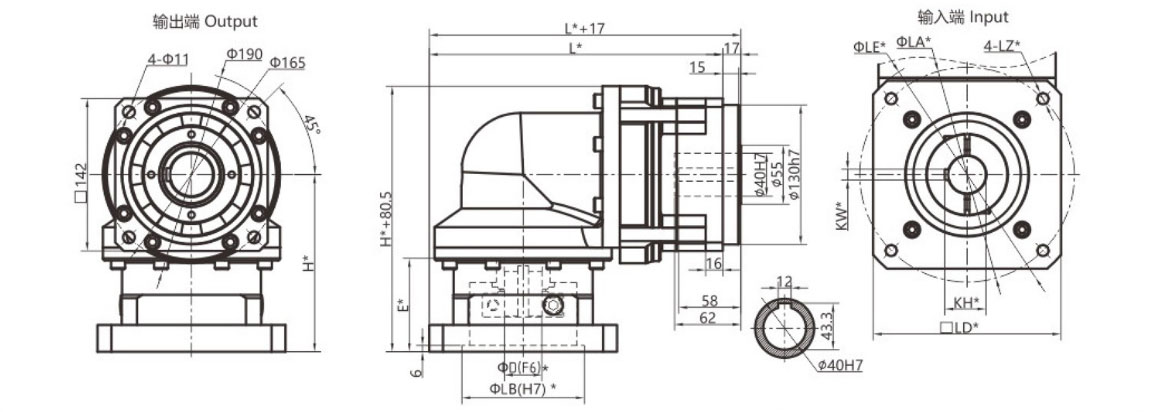

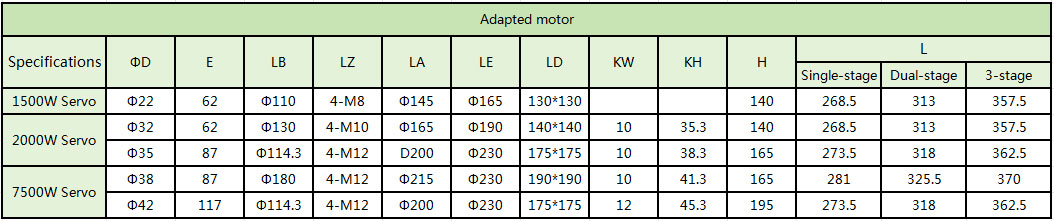

Dimensions of the Reducer


Solid shaft output mode | ||
S(Single key shaft) | S1(Optical shaft) | T(Custom shaft) |
![]() |
![]() |
According to customers |
2.The input shaft diameter of model 142 is ≤42mm, and input with key is optional.
3.The output shaft diameter of model 142 is≤55mm.
Reduction Ratio

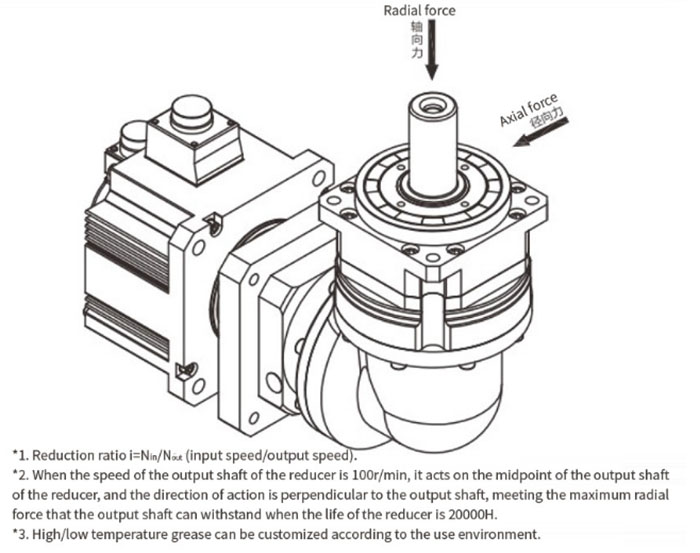

Reducer Parameters
